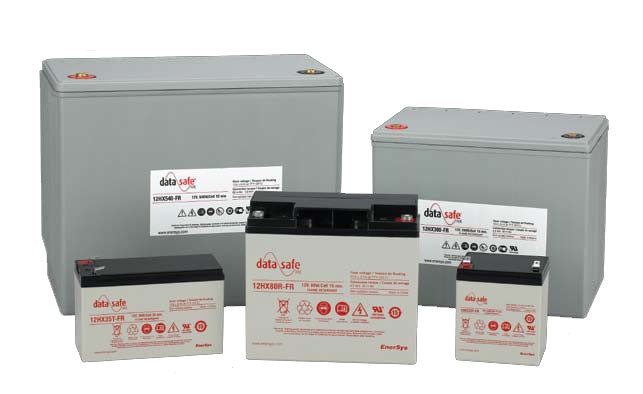

EnerSys DataSafe HX 12HX505

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 25°C: 506
  • Short Circuit Current (A): 4,510
  • Max Discharge Current: 913
  • Internal Resistance (mΩ): 3
  • Dimensions (inches): 13.3 x 6.8 x 10.7
  • Weight: 103 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX505 Category:
Description
Additional information

The DataSafe HX 12HX505 is one of the most powerful batteries in EnerSys’ HX line. It demonstrates minimal gas evolution and is well-suited for low-ventilation, high-rate applications and vital systems. The HX 12HX505, of high-performance classification, meets UL safety standards and is International Air Transport Authority (IATA) approved.

The DataSafe HX 12HX505 features optimized electrochemistry and AGM VRLA (Absorbed Glass Mat Valve Regulated Lead Acid) technology. Only manufactured in EnerSys 9001:2008 registered production facilities, the HX 12HX505 has a 10-year life expectancy and is rated at 100% capacity at initial discharge. Cabinet and flame-retardant cover and case sold separately.
