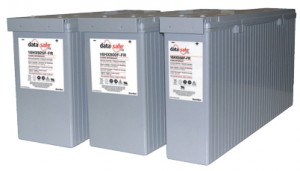

EnerSys DataSafe HX Front Terminal 16HX550F-FR

  • Nominal Voltage: 16
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 77Ā°F: 550
  • Short Circuit Current (A): 4,070
  • Internal Resistance (mĪ©): 4
  • Dimensions (inches): 27.2 x 4.6 x 12.3
  • Weight: 151 lbs
  • Smaller footprint per kilowatt
  • Improves reliability
  • Complete front access
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 16HX550F-FR, 16HX800F-FR, 16HX925F-FR
  • Download specsheet
  • Download MSDS
SKU: 16HX550F-FR Category:
Description
Additional information

The DataSafe HX 16HX550F-FR is a Flame Retardant (FR) case and cover that protects the the DataSafe HX 16HX550F battery from damage. It is fully compatible with the front terminal structure of the battery and meets UL safety standards. The DataSafe HX 16HX550F-FR supports an oxygen index of 28.

Manufacturer

application
