EnerSys PowerSafe DDm DDm125-33

  • Weight (per cell, unpacked): 355 lbs
  • Nominal row height / stack depth: 11 x 27.5
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 2,000
  • Internal Resistance (mΩ): 126
  • Nominal Voltage: 2
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm125-33 Category:
Description
Additional information

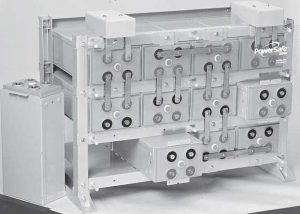

The PowerSafe DDm125-33 is the most powerful of three high-power valve-regulated lead-acid battery systems from EnerSys. With its 2,000 Ah capacity per cell, this battery system is suited to telecommunications or power-generation purposes. This battery adheres to top safety standards and is certified to UBC Zone 4 to six high. It also has a clear, flame-retardant front safety shield for easy access.

The PowerSafe DDm125-33’s steel can module design allows for a simple set-up and constant compression, and also a variety of configurations. Its frame design supports maximum heat dissipation. This battery is guaranteed to have 100% initial battery capacity upon first use.
