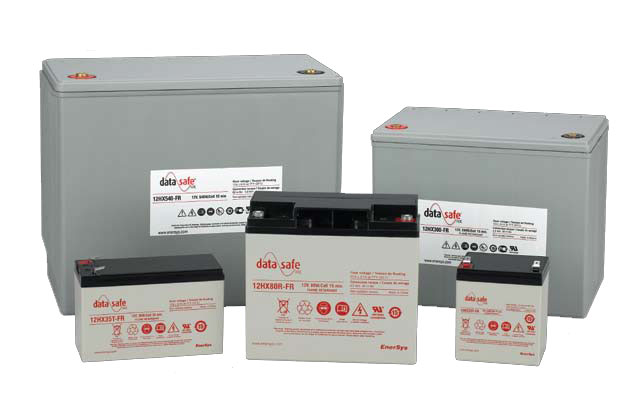

EnerSys DataSafe HX 12HX135R

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 77°F: 135
  • Short Circuit Current (A): 1,490
  • Max Discharge Current: 244
  • Internal Resistance (mΩ): 8
  • Dimensions (inches): 7.7 x 5.1 x 6.9
  • Weight: 26 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX135R Category:
Description
Additional information

The DataSafe HX 12HX135R is a member of the EnerSys DataSafe HX family of batteries, which EnerSys made for use in high-rate applications and vital systems. The HX 12HX135R meets UL safety standards with its minimal level of gas evolution. This powerful battery is a prudent choice for low-ventilation environments; it is safe to use near equipment or within offices and cabinets.

The DataSafe HX 12HX135R is outfitted with negatively and positively charged, lead-calcium-tin alloy plate grids; a high-performance, brass-threaded receptacle, bolt terminal, and faston terminals; and individual flame-arresting cell vents. It has a 10-year optimal lifespan and sustains 100% battery capacity at initial discharge. The Front Terminal DataSafe cabinet furnishes higher energy density and is available for separate purchase.
