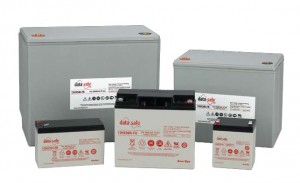

EnerSys DataSafe HX 6HX50

  • Nominal Voltage: 6
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 25°C: 53
  • Short Circuit Current (A): 835
  • Max Discharge Current: 75
  • Internal Resistance (mΩ): 8
  • Dimensions (inches): 5.9 x 2 x 3.9
  • Weight: 5 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 6HX50 Category:
Description
Additional information

The DataSafe HX 6HX50 is the first in EnerSys’ HX battery range, which was designed for use in high rate applications, especially where space is scarce. This IATA-approved battery exhibits a minimal level of gas evolution and is fit for use in low-ventilation areas, such as in cabinets or on stands, in offices, or near other equipment. This advantage allows customers to use less space and minimize storage and maintenance costs.

The DataSafe HX 6HX50 is classified as a high-performance battery with a 10-year lifespan. It incorporates several advanced technologies, including optimized electrochemistry, Absorbed Glass Mat Valve Regulated Lead Acid (AGM VRLA) technology, and opposite-charge lead-calcium-tin alloy plate grids. The individual flame-arresting cell vents and high-performance, brass-threaded receptacle, bolt terminal and faston terminals make the DataSafe HX 6HX50 efficient and resilient.
