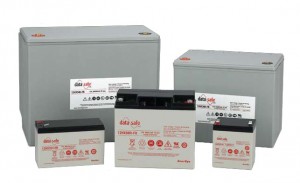

EnerSys DataSafe HX 12HX400

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 25°C: 381
  • Short Circuit Current (A): 4,225
  • Max Discharge Current: 670
  • Internal Resistance (mΩ): 3
  • Dimensions (inches): 11.8 x 6.8 x 8.4
  • Weight: 80 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX400 Category:
Description
Additional information

The DataSafe HX 12HX400 exhibits minimal gas evolution, making it ideal for low-ventilation, high-rate applications and vital systems. The HX 12HX400 is International Air Transport Authority (IATA) approved and meets UL safety standards. Classified a high-performance battery, the HX 12HX400 is particularly fitting for UPS applications.

The DataSafe HX 12HX400 is made up of positively and negatively charged lead-calcium-tin alloy plate grids, as well as high-performance, brass-threaded terminals (fasten and bolt) and brass-threaded receptacle. The optional EnerSys Front Terminal DataSafe cabinet allows for higher energy density, and the flame-resistant case and cover meet UL1778 standards and ensure that the battery is functional for a full 10 years.
