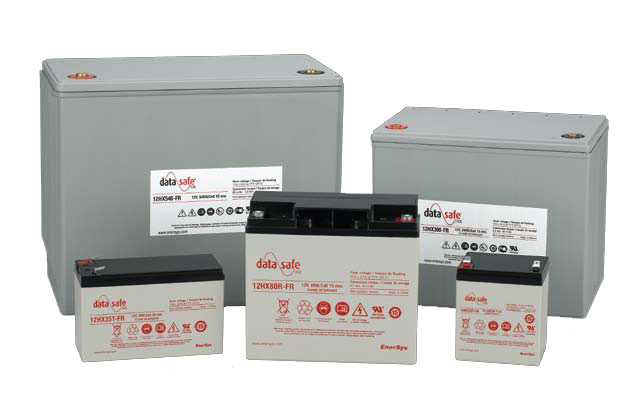

EnerSys DataSafe HX 12HX300

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 25°C: 284
  • Short Circuit Current (A): 3,175
  • Max Discharge Current: 503
  • Internal Resistance (mΩ): 4
  • Dimensions (inches): 10.2 x 6.9 x 8.2
  • Weight: 60 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX300 Category:
Description
Additional information

EnerSys created the DataSafe HX 12HX300 for low-ventilation, high-rate applications and vital systems. This unique battery combines the power of 12V with a low level of gas evolution, earning it approval for air freight applications. The DataSafe HX 12HX300 meets UL safety standards and is suitable for use in offices, cabinets, and near equipment.

The DataSafe HX 12HX300 has several important components, including individual flame-arresting cell vents; high-performance, brass-threaded terminals (faston and bolt); a brass-threaded receptacle; and positively and negatively charged lead-calcium-tin alloy plate grids. The HX 12HX300 has 100% initial discharge capacity. The addition of an EnerSys Front Terminal DataSafe cabinet allows for higher energy density.
