EnerSys PowerSafe DDm DDm85-25

  • Weight (per cell, unpacked): 183 lbs
  • Nominal row height/stack depth: 8.63 x 23.5
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 1020
  • Internal Resistance (mΩ): 258
  • Nominal Voltage: 2
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm85-25 Category:
Description
Additional information

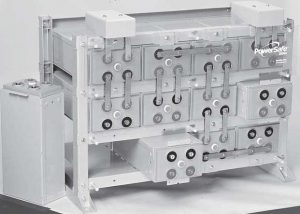

The PowerSafe DDm85-25 is a large capacity valve-regulated lead-acid battery system. It has a lead casting terminal and threaded copper insert with a large surface area to guarantee maximum battery capacity. The efficient frame design allows for maximum heat dissipation.

The PowerSafe DDm85-25 has a polypropylene flame-retardant cover and a relief valve with an integral flame arrestor. A thick positive plate minimizes corrosion and prolongs battery life. This well-ventilated battery has a VRLA construction that does not necessitate watering.
