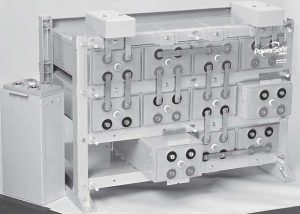

EnerSys PowerSafe DDm DDm100-25

  • Weight (per cell, unpacked): 219 lbs
  • Nominal row height / stack depth: 8.63 x 26.25
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 1200
  • Internal Resistance (mΩ): 225
  • Nominal Voltage: 2
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm100-25 Category:
Description
Additional information

With its 100% out-of-box initial battery capacity, the PowerSafe DDm 100-25 gives you top performance right away. With thicker positive plates and enhanced cell design, the PowerSafe DDm100-25 has a longer battery life than comparable systems. The flexible individual steel cell cans provide flexible yet consistent compression.

The “Designed-In” thermal management and steel can of the PowerSafe DDm 100-25 allows for maximum airflow. This battery is versatile and can be arranged in many different configurations. It is certified to Universal Building Code Zone 4 to eight high.
