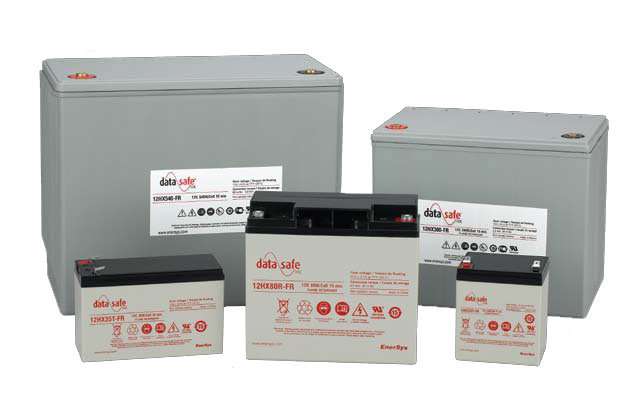

EnerSys DataSafe HX 12HX100

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 77°F: 103
  • Short Circuit Current (A): 1,045
  • Max Discharge Current: 196
  • Internal Resistance (mΩ): 12
  • Dimensions (inches): 6.5 x 4.9 x 6.9
  • Weight: 22 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX100 Category:
Description
Additional information

The DataSafe HX 12HX100 is a high-efficiency, IATA-approved battery intended for use as a backup power source for high-rate applications and vital systems. As part of the EnerSys DataSafe HX family of batteries, the HX 12HX100 demonstrates the minimal level of gas evolution characteristic of the line. This helpful feature makes the HX 12HX100 appropriate for low-ventilation environments. This powerful battery can be safely placed in close proximity to equipment or within offices.

The DataSafe HX 12HX100 has a 10-year optimal lifespan and arrives at 100% initial battery capacity. Its front terminal scales to larger kVA (kilovolt-ampere) systems, including 550, 800, and 925 watts per cell (WPC). The optional flame-repellant case and cover shield the battery from fire damage, and a Front Terminal DataSafe cabinet adds exceptional energy density.
