EnerSys DataSafe HX 12HX25

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 25°C: 23
  • Short Circuit Current (A): 415
  • Max Discharge Current: 50
  • Internal Resistance (mΩ): 20
  • Dimensions (inches): 3.5 x 2.8 x 4.2
  • Weight: 4 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX25 Category:
Description
Additional information

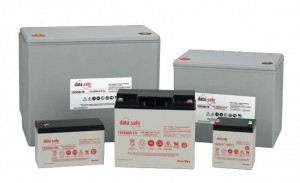

The DataSafe HX 12HX25 is part of the EnerSys HX battery range. Unlike the DataSafe HX6 series, the DataSafe HX 12 series is equipped with a nominal voltage of 12V for even more power. This IATA-approved battery range was created for use in high-rate applications, particularly where space is limited. Its minimal ventilation requirements allow customers to incur fewer storage and maintenance costs.

The DataSafe HX 12HX25 is classified as a high-performance battery. It features a 10-year lifespan when kept under optimal conditions and includes several advanced technologies; these include opposite-charge lead-calcium-tin alloy plate grids, optimized electrochemistry, and Absorbed Glass Mat Valve Regulated Lead Acid (AGM VRLA) technology. The individual flame-arresting cell vents, along with the high-performance brass-threaded receptacle, make the DataSafe HX 12HX25 a perfect choice for protecting vital systems.
