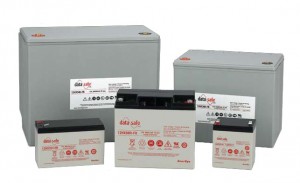

EnerSys DataSafe HX 12HX135B

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 77°F: 135
  • Short Circuit Current (A): 1,490
  • Max Discharge Current: 244
  • Internal Resistance (mΩ): 8
  • Dimensions (inches): 7.8 x 5.1 x 7.1
  • Weight: 26 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX135B Category:
Description
Additional information

The DataSafe HX 12HX135B was intended for high-rate applications and vital systems. A member of the EnerSys DataSafe HX family of batteries, the HX 12HX135B meets UL safety standards and displays little gas evolution. It is a safe choice for low-ventilation environments and can be placed adjacent to equipment or inside of offices.

The DataSafe HX 12HX135B has a 10-year optimal lifespan and has 100% battery capacity at initial discharge. The front terminal of the HX 12HX135B scales to larger kVA (kilovolt-ampere) systems up to 925 watts per cell (WPC). The battery is outfitted with a high-performance, brass-threaded receptacle, bolt terminal, and faston terminals. A noncompulsory Front Terminal DataSafe cabinet adds exceptional energy density.
