EnerSys PowerSafe DDm DDm100-21

  • Weight (per cell, unpacked): 185 lbs
  • Nominal row height/stack depth: 8.63 x 26.25
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 1,000
  • Internal Resistance (mΩ): 270
  • Nominal Voltage: 2
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm100-21 Category:
Description
Additional information

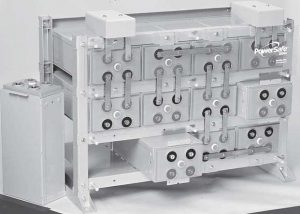

With its modular design and integral racking system, the PowerSafe DDm 100-21 is the ideal solution for large capacity valve-regulated lead-acid battery requirements. The racking system makes installation easy and compact, providing total flexibility for system configuration. Enhanced cell design with thicker positive plates provides a longer battery life.

The PowerSafe DDm 100-21 is certified to UBC Zone 4 to eight high, which means that not only is it simple to install, it is rugged and durable. Its steel can design and “Designed-In” thermal management allows for maximum airflow, making it efficient as well as consistent. The PowerSafe DDm 100-21 can be arranged in a number of flexible configurations.
