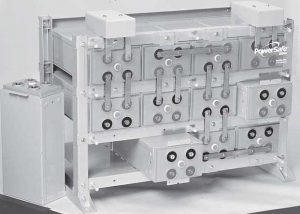

EnerSys PowerSafe DDm DDm85-27

  • Weight (per cell, unpacked): 199 lbs
  • Nominal row height / stack depth: 8.63 x 23.5
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 1105
  • Internal Resistance (mΩ): 238
  • Nominal Voltage: 2
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm85-27 Category:
Description
Additional information

The PowerSafe DDm85-27 is another large capacity valve-regulated lead-acid battery system by EnerSys. It has a maximum capacity of 1105 Ah in a single cell, and a lead casting terminal post with threaded copper insert for maximum conductivity. This battery also has a 100% “out of box” initial battery capacity.

The PowerSafe DDm85-21 is certified to UBC Zone 4 to eight high. It has a “Designed-In” thermal management and integral flame arrestor relief valve which adhere to top safety standards; it also comes with a clear, flame-retardant front safety shield that allows for easy system inspection. With minimal maintenance requirements and excellent reliability, the PowerSafe DDm85-27 is an ideal fit for a range of applications.
