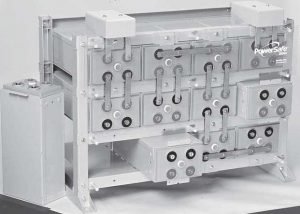

EnerSys PowerSafe DDm DDm125-27

  • Weight (per cell, unpacked): 290 lbs
  • Nominal row height / stack depth: 11 x 27.5
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 1,625
  • Internal Resistance (mΩ): 155
  • Nominal Voltage: 2
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm125-27 Category:
Description
Additional information

The PowerSafe DDm125-27 is the second of three high-power valve-regulated lead-acid battery systems from EnerSys. Its 1650 Ah capacity per cell makes it the middle ground between the DDm125-25 and the DDm125-27. All of these batteries are well-suited for high-power battery requirements. Its frame design is both flexible and durable; this battery is certified to UBC Zone 4 to six high.

The modular, steel can design of the PowerSafe DDm 125-27 makes it easy to set up, gives it stable compression, and allows for adaptable configurations. This battery has a clear, flame-retardant front safety shield for hassle-free inspection and adheres to top safety standards. It is guaranteed to have 100% initial battery capacity upon first use.
