EnerSys PowerSafe DDm DDm50-09

  • Weight (per cell, unpacked): 47 lbs
  • Nominal row height / stack depth: 8.63 x 16.25
  • WPC (watts per cell) for 8 hr rate to 1.75Vpc at @ 77°F: 200
  • Internal Resistance (mΩ): 825
  • Nominal Voltage: 4
  • Capacity: 422-3853 watts/cell
  • Container/Cover _ Polypropylene flame retardant standard (UL94 V-0/L.O.I. 28%)
  • Standard configurations certified to 1997 UBC Zone 4
  • 100% “out of box” initial battery capacity
  • Individual steel can provides flexible configuration and uniform and consistent compression
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: DDm35-07, DDm50-09, DDm50-13, DDm50-17, DDm85-13, DDm85-15, DDm85-21, DDm85-25, DDm85-27, DDm85-33, DDm100-21, DDm100-25, DDm100-27, DDm100-33, DDm125-25, DDm125-27, DDm125-33
  • Download specsheet
SKU: DDm50-09 Category:
Description
Additional information

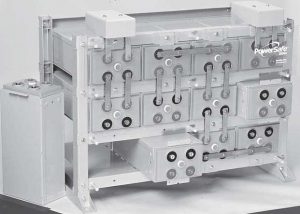

The PowerSafe DDm50-09 is a large capacity valve-regulated lead-acid battery that runs at up to 200 Ah in a single cell. It is low-maintenance and its frame design allows for maximum heat dissipation. The integral racking system and modular design provide for simple and compact installation.

The PowerSafe DDm50-09 battery system is safe to ship and is guaranteed to run at 100% capacity straight out of the box. The cells are protected from damage during transport. Certified to UBC Zone 4 to six high, the DDm50-09 is also completely accessible from the front for hassle-free maintenance.
