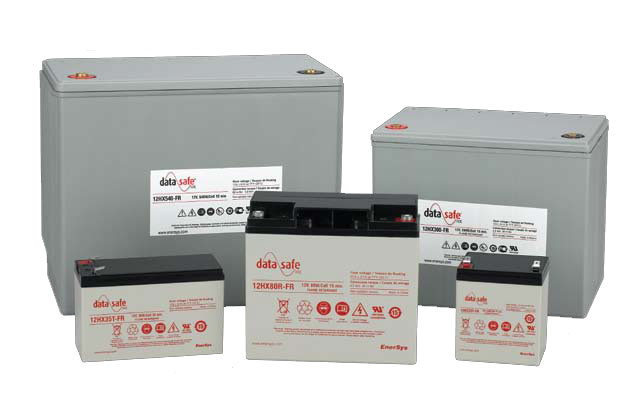

EnerSys DataSafe HX 12HX35

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 77°F: 36
  • Short Circuit Current (A): 545
  • Max Discharge Current: 50
  • Internal Resistance (mΩ): 23
  • Dimensions (inches): 5.9 x 2.6 x 3.9
  • Weight: 6 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX35 Category:
Description
Additional information

The DataSafe HX 12HX35, part of the EnerSys HX battery range, is equipped with an impressive nominal voltage of 12V. The DatSafe HX 12HX35 sustains very little gas evolution and therefore needs minimal ventilation. This invaluable quality has earned the DatSafe HX series International Air Transport Association approval.

The DataSafe HX 12HX35 has positively and negatively charged lead-calcium-tin alloy plate grids, Absorbed Glass Mat Valve Regulated Lead Acid (AGM VRLA) technology, and optimized electrochemistry. Other features include high-performance, brass-threaded receptacles and terminals, as well as individual flame-arresting cell vents.
