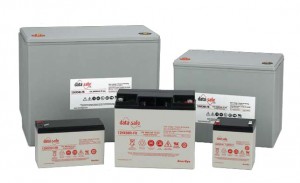

EnerSys DataSafe HX 12HX330

  • Nominal Voltage: 12
  • WPC (watts per cell) for 15 min. to 1.67 VPC at @ 25°C: 336
  • Short Circuit Current (A): 3,700
  • Max Discharge Current: 586
  • Internal Resistance (mΩ): 3
  • Dimensions (inches): 11.8 x 6.8 x 8.4
  • Weight: 71 lbs
  • Designed specifically for UPS applications
  • Manufactured in EnerSys ISO 9001:2000 registered production facilities
  • Part no: 12HX25, 12HX35, 6HX50, 12HX50, 12HX80, 12HX100, 12HX135B, 12HX135R, 12HX150, 12HX205, 12HX300, 12HX330, 12HX400, 12HX505, 12HX540, 6HX800
  • Download specsheet
  • Download MSDS
SKU: 12HX330 Category:
Description
Additional information

The DataSafe HX 12HX330 is suited to low-ventilation, high-rate applications and vital systems. This International Air Transport Authority (IATA) approved, UL standard-meeting battery combines 12V with a minimum level of gas evolution. The DataSafe HX 12HX330 is safe enough to use in offices and cabinets.

The DataSafe HX 12HX330 features positively and negatively charged lead-calcium-tin alloy plate grids. The high-performance, brass-threaded terminals (fasten and bolt) and brass-threaded receptacle add strength and conductivity. The addition of an EnerSys Front Terminal DataSafe cabinet allows for higher energy density, and the UL 1778 standard-meeting flame-resistant case and cover ensure that the battery reaches its full 10-year lifespan.
